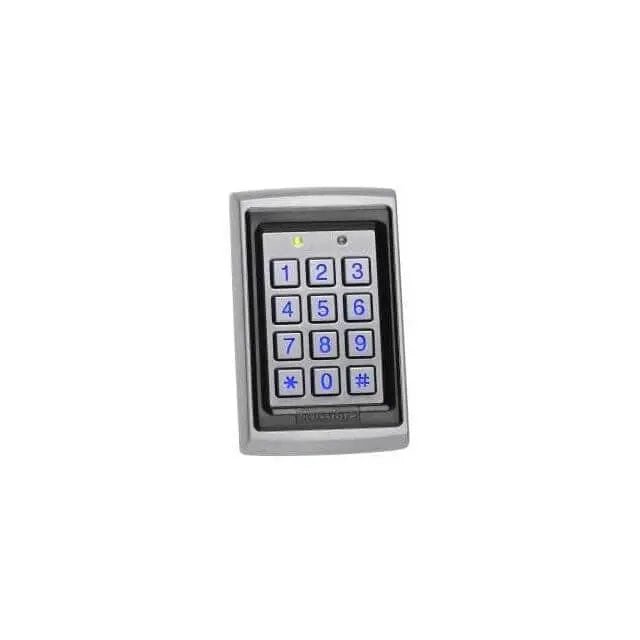

Rosslare AYC-Q64B Proximity + PIN Reader/Controller

The Rosslare AYC-Q64B is a vandal-resistant, single-gang proximity and PIN reader for indoor or outdoor access-control applications. It can operate as a reader for a compatible host controller or convert to a standalone controller when paired with the required Rosslare intelligent power-supply and relay unit.

Key features

• Reads compatible 125 kHz, 26-bit EM proximity credentials
• Supports 4- to 8-digit PIN entry and multiple PIN transmission formats
• Wiegand 26-bit or Clock & Data reader output
• Backlit metal keypad, audible feedback and status LEDs
• Sealed metal housing with optical tamper detection
• IP65-rated construction for suitable indoor and outdoor locations

Reader and controller modes

In reader mode, the AYC-Q64B operates from 5–16VDC and connects to a compatible access-control panel. Standalone controller mode supports up to 500 users but requires the specified Rosslare PS-x25T-family power and relay equipment. Credential format, controller compatibility, wiring and power must be confirmed before ordering.

Professional access-control support in Texas

Avenger Security provides access-control design, installation, programming and service throughout Austin, Central Texas and statewide. New clients considering new service can request a no-cost onsite visit and up to one hour of initial consultation. Existing troubleshooting, diagnostics and repair are billable services.
