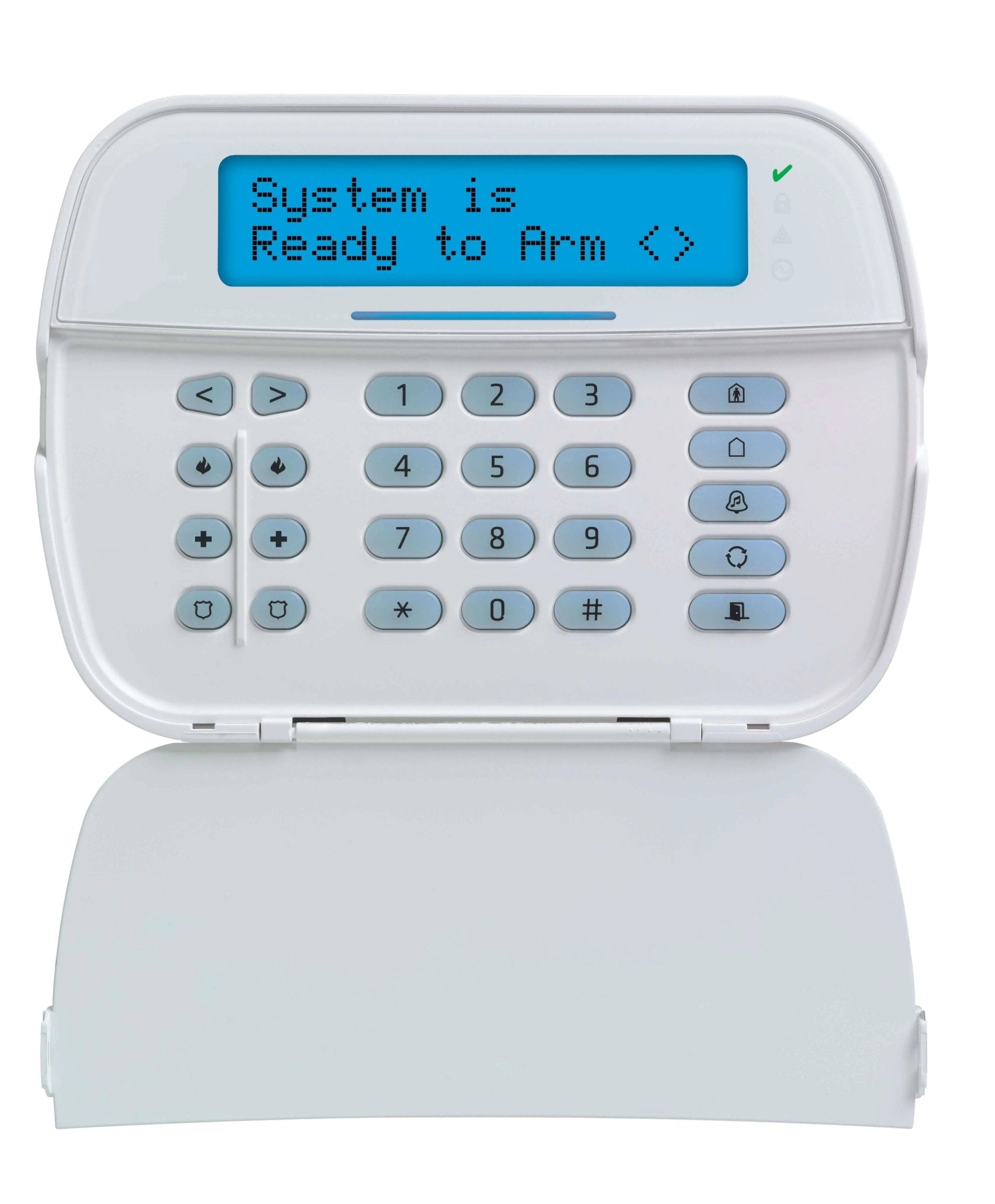

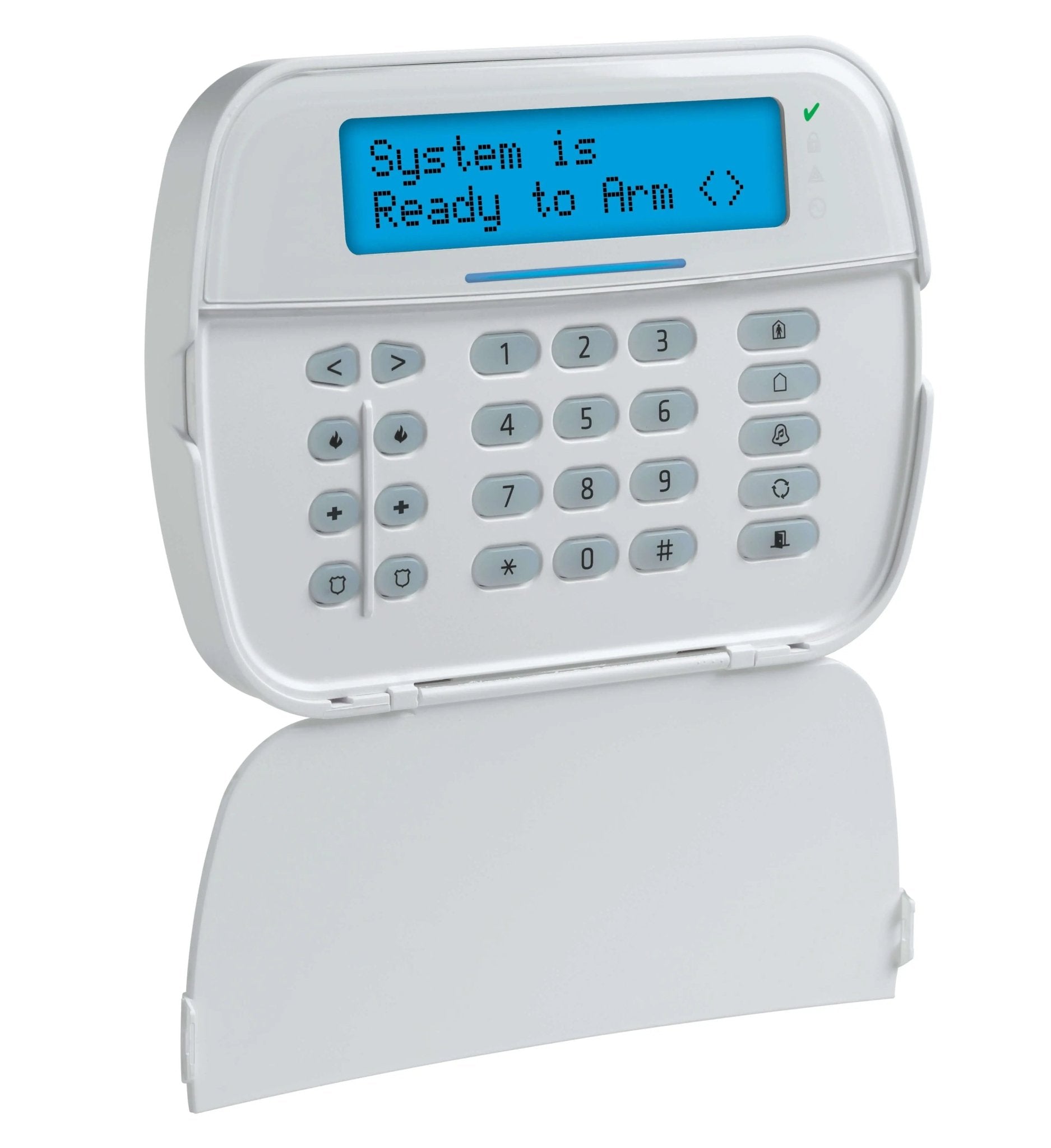

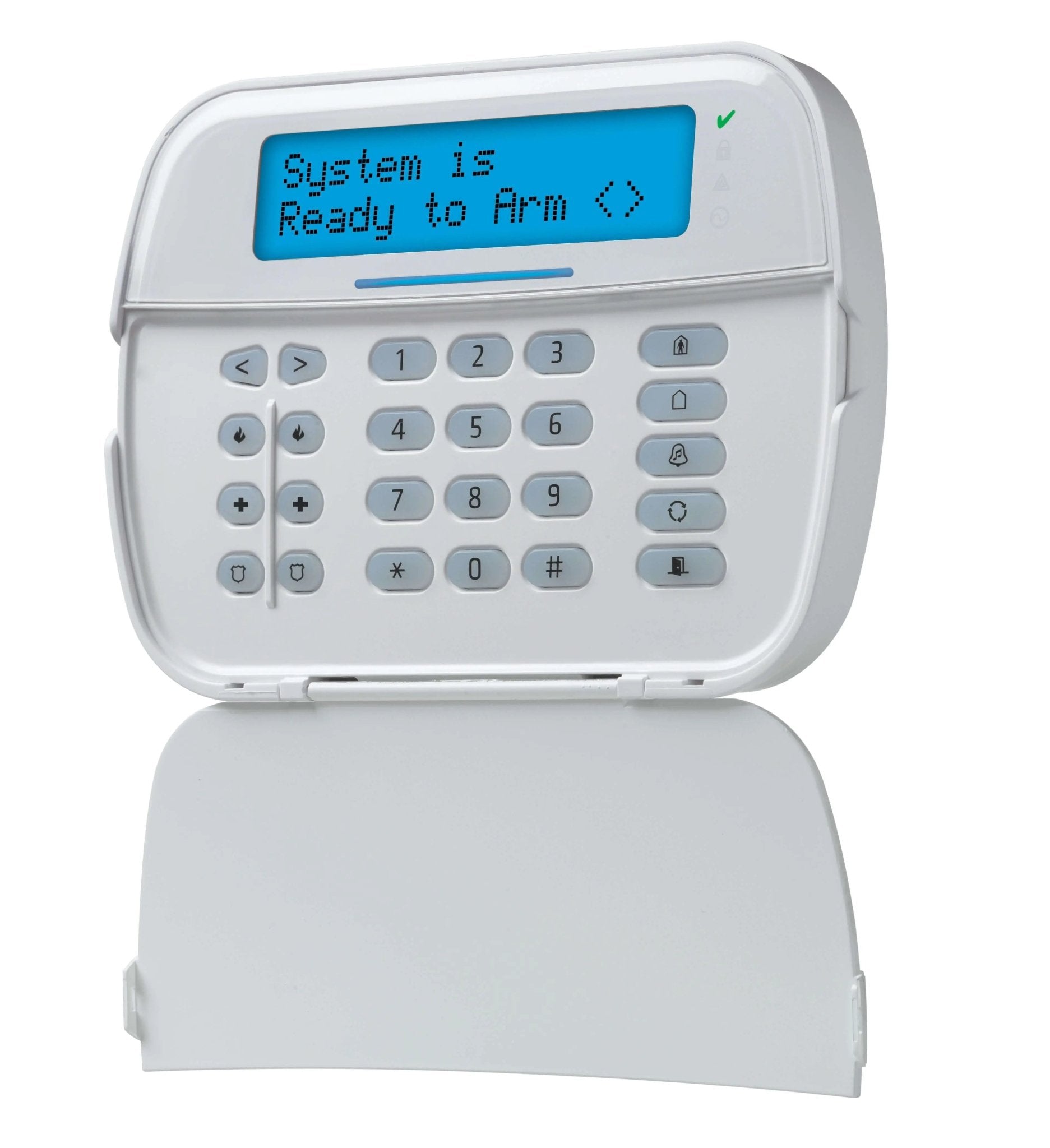

DSC HS2LCDRF9 PowerSeries Neo LCD Keypad with PowerG

The DSC HS2LCDRF9 combines a full-message hardwired LCD keypad with a built-in North American PowerG wireless transceiver. It provides the user and installer interface for a compatible PowerSeries Neo panel while enabling enrollment of compatible PowerG wireless sensors.

Key features

• Built-in PowerG wireless transceiver
• Full-message blue LCD with 32-character programmable labels
• Six-language support and global partition status
• Supports systems with up to 128 hardwired or wireless zones, subject to panel capacity
• Five programmable function keys
• White backlit keys with adjustable backlight and keypad buzzer
• Input/output terminal and dual wall-mount/front-cover tamper
• Fire, medical and panic function keys when enabled by the system configuration

Compatibility requirements

The HS2LCDRF9 is for compatible DSC PowerSeries Neo control panels. The “9” model uses the North American 912–919 MHz PowerG frequency range; PowerG devices from other radio regions are not interchangeable. A Neo system supports one wireless transceiver, so do not add this keypad to a system that already uses another RF keypad or HSM2HOST9 without first confirming the intended configuration.

This keypad does not include an alarm control panel, sensors, communicator or monitoring service. Alarm.com app features require a compatible communicator, supported panel firmware and an active service plan.

Professional installation and support in Texas

Avenger Security provides system design, installation, programming and service across Austin, Central Texas and statewide. New clients considering new service can request a no-cost onsite visit and up to one hour of initial consultation. Existing troubleshooting, diagnostics and repair are billable services.
