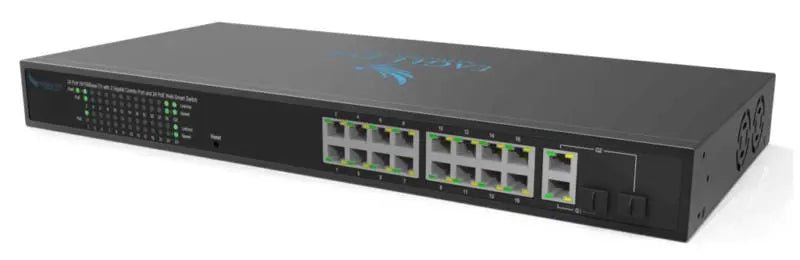

Eagle Eye SW18m 16-Port Managed PoE+ Switch

The Eagle Eye SW18m is a rack-mountable managed PoE+ switch designed for multi-camera video-surveillance networks. It combines 16 powered camera ports with gigabit combo uplinks and can integrate with Eagle Eye Cloud VMS for centralized camera-network management.

Key specifications

• Model: SW18m; manufacturer part number EN-SW18m-001
• 18 total ports: 16 Class 3 PoE+ camera ports and two gigabit combo uplink interfaces
• IEEE 802.3af and 802.3at PoE support
• Maximum PoE power budget: 250W
• 10/100 Mbps PoE camera ports
• Built-in 100–240V AC power supply
• Rack-mountable steel chassis; mounting ears included
• Approximate dimensions: 440 × 200 × 44mm (17.3 × 7.9 × 1.7 in.)
• Rated operating range: 0–40°C (32–104°F)

Eagle Eye Cloud VMS integration

In a compatible Eagle Eye deployment, authorized users can remotely manage the switch and power-cycle individual camera ports. Cloud-management features require a supported Eagle Eye Cloud VMS system and active service. Cameras, licensing, network design and installation are separate unless included in your project proposal. Online inventory is currently unavailable; contact Avenger Security to confirm current model availability and replacement options.

Professional installation and support in Texas

Avenger Security provides system design, installation, programming and service across Austin, Central Texas and statewide. New clients considering new service can request a no-cost onsite visit and up to one hour of initial consultation. Existing troubleshooting, diagnostics and repair are billable services.
