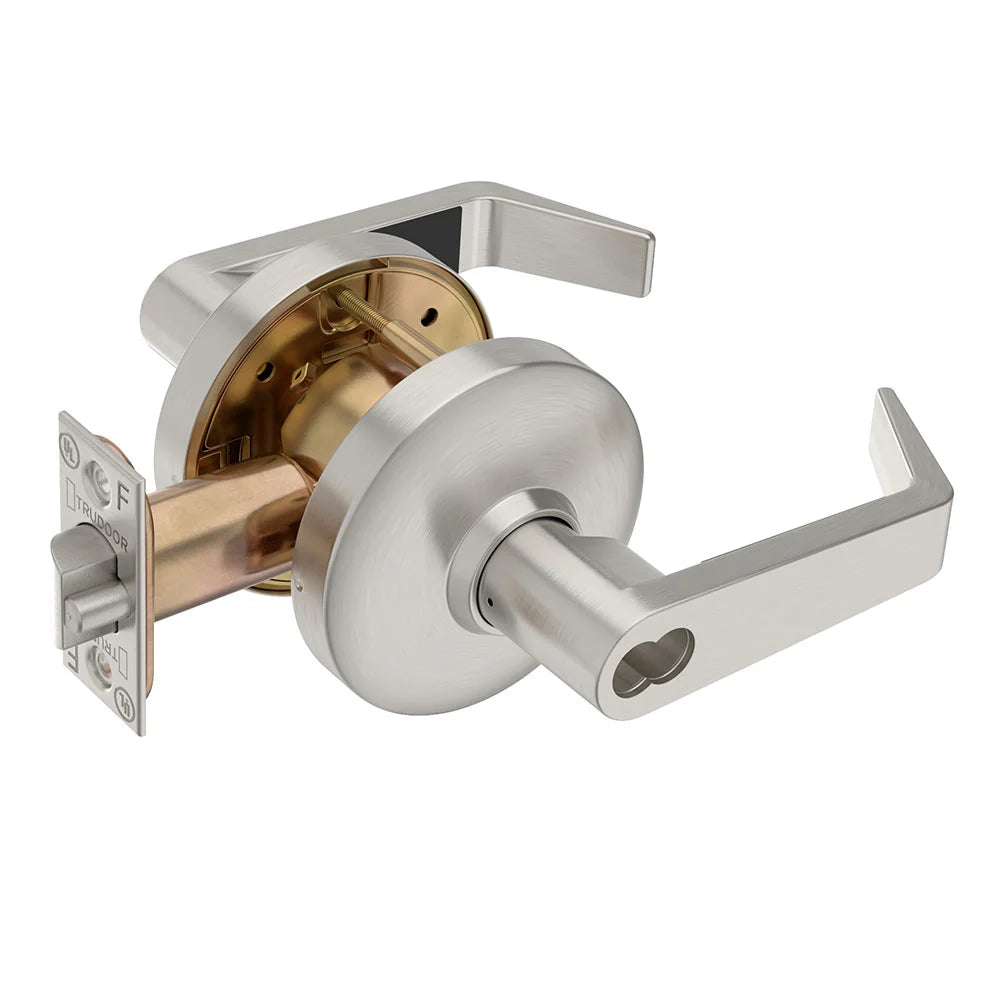

CL1-86-SFIC Grade 1 Storeroom Lever Lock – Less Core

Heavy-duty Grade 1 storeroom lever with SFIC preparation

The CL1-86-SFIC is a commercial cylindrical lever lock for storage rooms, electrical rooms, mechanical rooms, IT rooms and other restricted spaces. Its ANSI F86 storeroom function keeps the outside lever locked while the inside lever remains free for immediate egress.

Supplied less core: a compatible small-format interchangeable core, control key and operating keys are required and sold separately.

Key features

• ANSI/BHMA A156.2 Grade 1 construction
• ANSI F86 storeroom function
• SFIC prep for fast core replacement without disassembling the lock
• Clutched outside lever helps resist forced rotation when locked
• Non-handed, reversible installation
• 2-3/4-inch backset and ASA/ANSI strike
• ADA/ANSI A117.1 compliant lever design
• UL listed for use on A-label three-hour fire doors when installed as required
• For 1-3/8- to 1-3/4-inch wood or hollow-metal doors

Function and ordering notes

Exterior entry requires an authorized key; the inside lever always retracts the latch for free egress. Verify door thickness, backset, finish, strike, fire-door requirements and the facility's SFIC keyway/master-key system before ordering. Fire-rated openings must retain the listed door, frame, latch and installation configuration.
